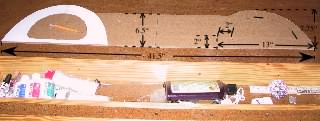

Used a piece of cardboard for a template. Held the
cardboard against the rollbar and traced around the rollbar for
overall height and length (7.75" H x 41.5" L). Location
was then marked for the slots for the velcro straps.
|
 |

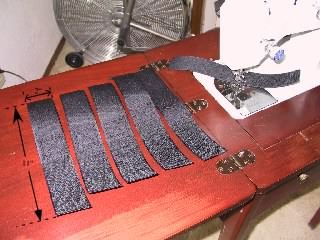

The rollbar circumference was measured to determine
the length of the velcro straps to be used. A total of six straps
2" wide by 11" long were used. Each strap consisted
of a 6.5" piece of hook and a 6.5" of loop. The two
pieces were overlapped 2" and then sewn together.
|
 |
After checking the template for fit, we transferred
the markings from the cardboard template onto the 1/8" plexiglass.
Used a router to cut out the windscreen and the slots. Sanded
and smoothed the edges.
|
 |

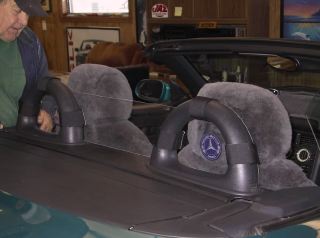

After removing the plexiglass protective paper, added
MBCA decals (of course, this is optional) and secured the plexiglass
windscreen with the velcro straps.
|
 |
Installation finished!
Now we'll have to take the car for a ride to see
how it works.
|
