2001 PT Cruiser - "Salsa"

- scroll down to see more pictures


Installing the Mopar Subwoofer (50-watt amplifier and an 8" woofer - hidden in the left rear-quarter trim panel). Step-by-step instructions included - provided by Mopar.

Installation accomplished by Norm and Pat Waleke in about three hours.

Notes: Install parts as shown on illustrations.
To avoid damage to the wiring harness, ensure no contact with sharp edges.
Re-fit panels, ensure components and wiring harness are neatly and securely located.
Use provided torque value for fastening seat belts, and other safety items, or refer to service manual.
 Click on pictures for a larger view

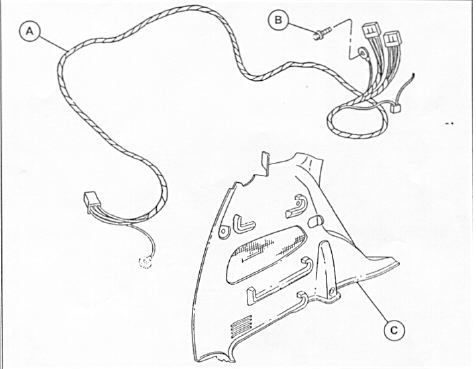

 Parts included

.

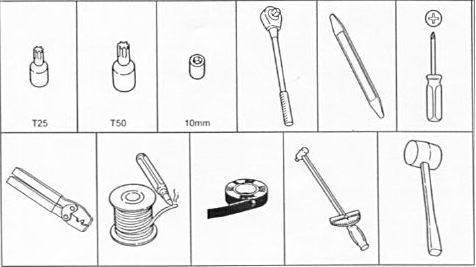

 Tools required

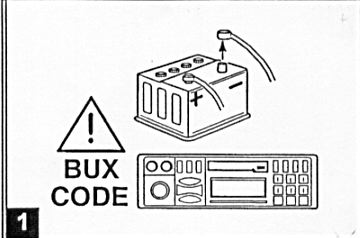

Disconnect Battery

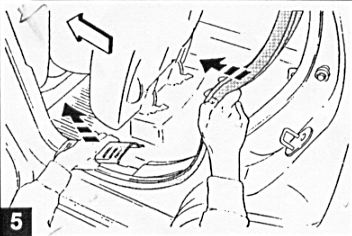

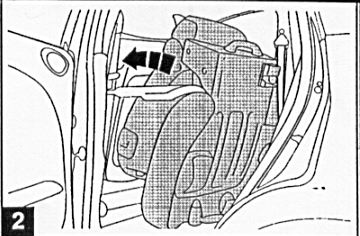

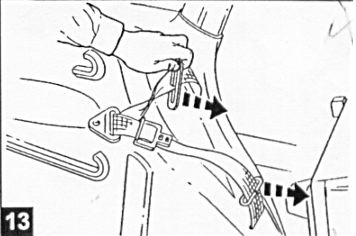

Remove rear seat


 Remove rear speaker cover and loosen rubber gasket

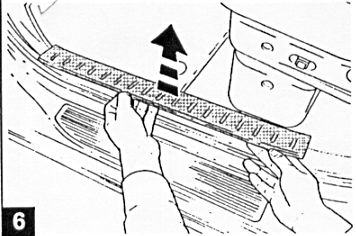

 Remove rear trim cover

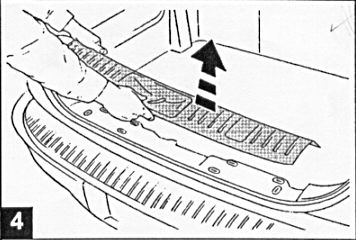

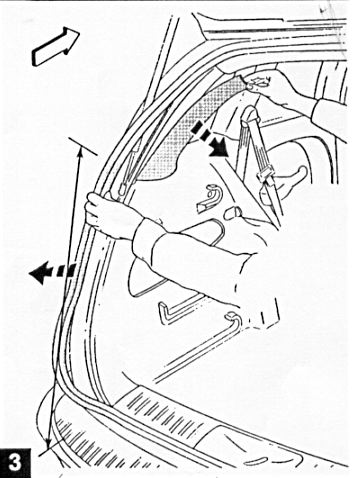

 Loosen back door rubber gasket

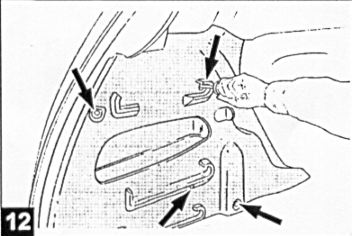

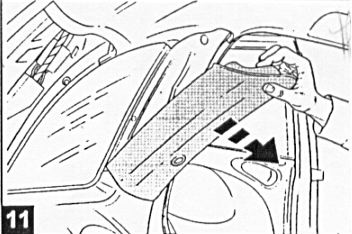

 Remove side cover

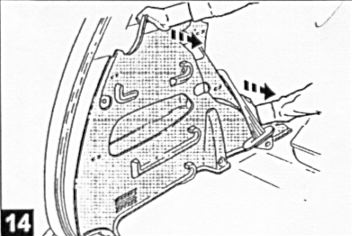

 Remove front trim panel

Remove cover for seat securing latch

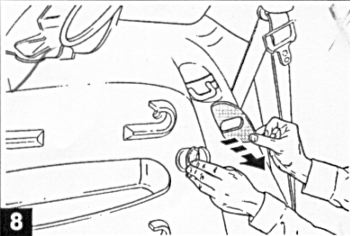

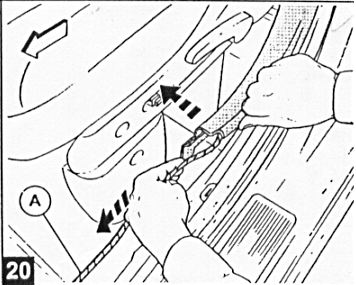

 Remove seatbelt bracket cover

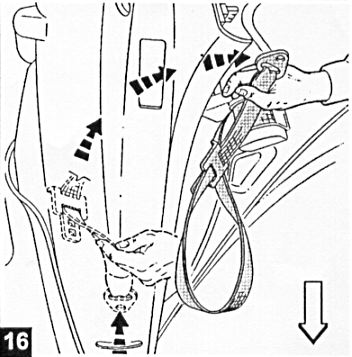

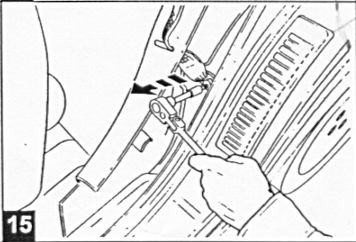

 Remove seatbelt bracket bolt

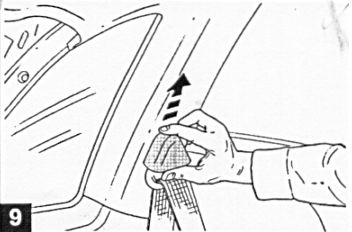

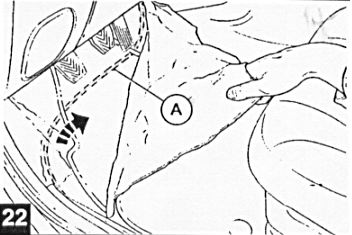

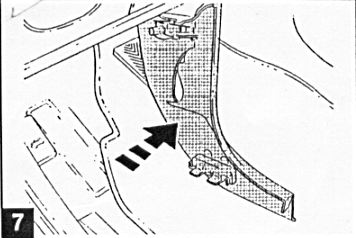

 Remove pillar cover

 Remove trim panel screws

Remove seatbelt alignment clips

Pull trim panel out

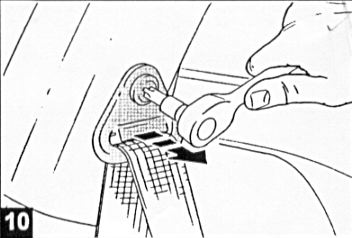

Remove seatbelt bolt

Remove sealbelt from trim panel

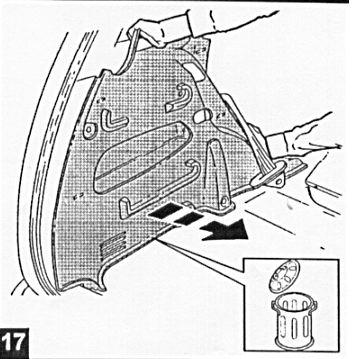

 Remove and discard trim panel

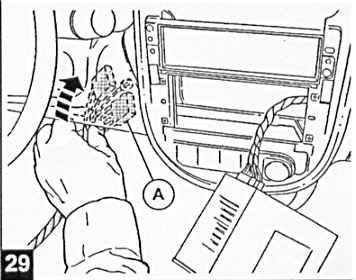

Tape wiring harness to existing rear speaker wires

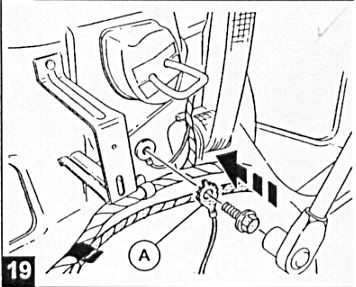

Secure grounding strap with existing bolt

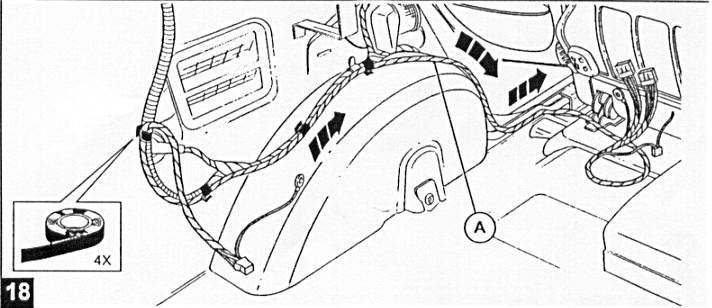

Pull back trim and run wiring harness underneath trim

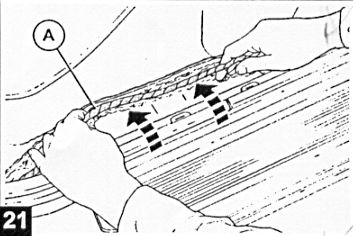

Pull back carpet and run wires behind it

Pull back carpet by brake pedal and run wires underneath

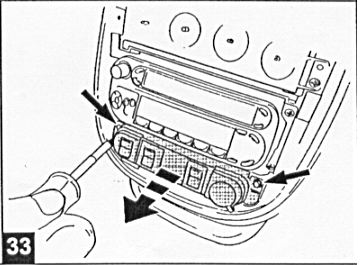

Remove window switch cover

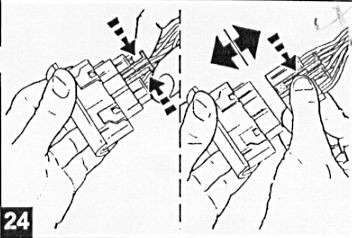

Disconnect wiring harness for the window switch

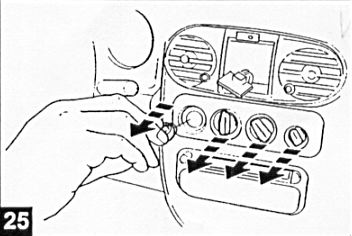

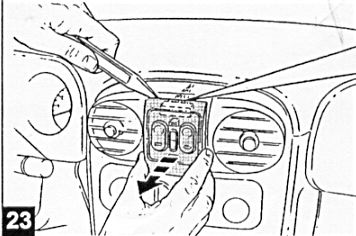

Remove HVAC switch knobs

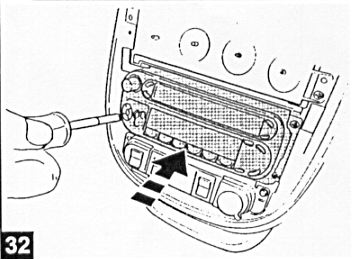

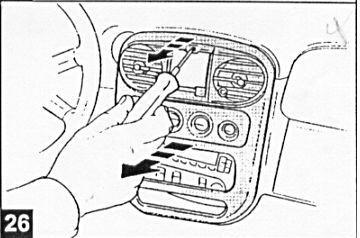

Remove face plate

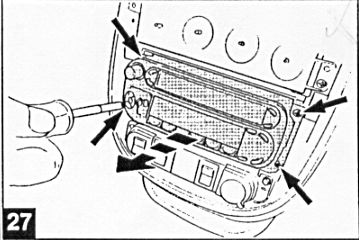

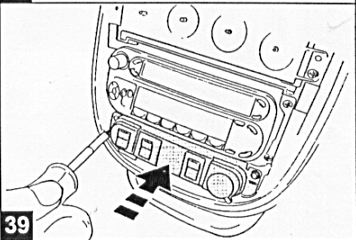

Remove four screws and remove head unit

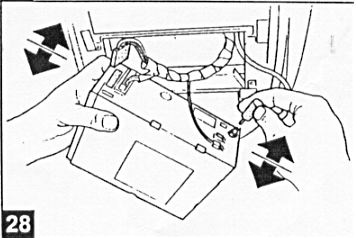

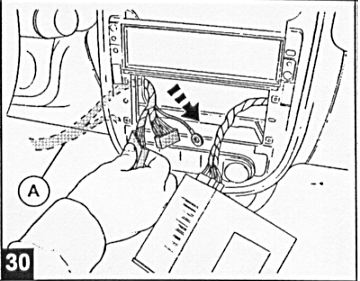

Disconnect wiring harness from head unit

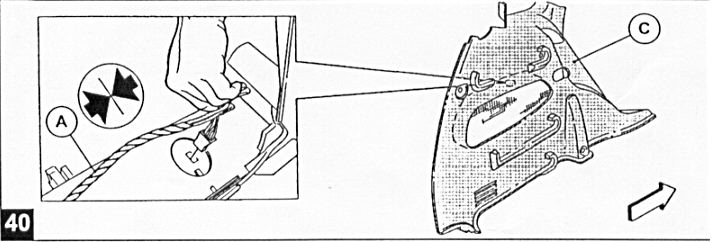

Route harness from under dash

Pull wiring harness through head unit opening

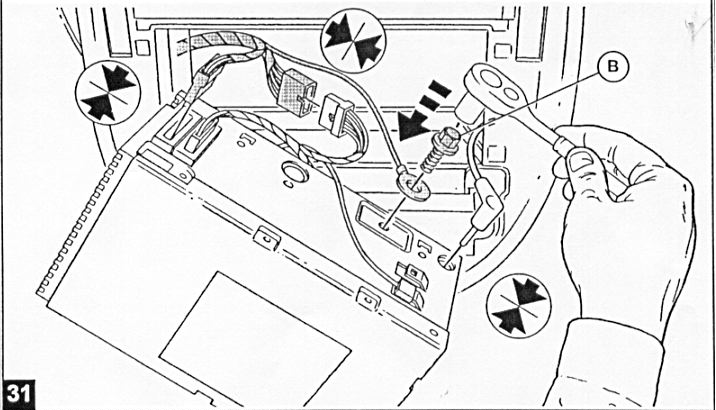

Reconnect new wiring harness and grounding strap with bolt provided

Reinstall head unit

Remove screws and pull out power outlet

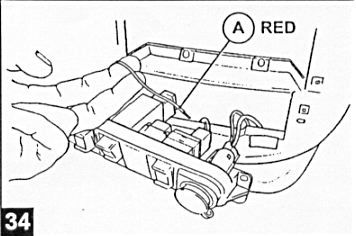

Locate red wire from wiring harness

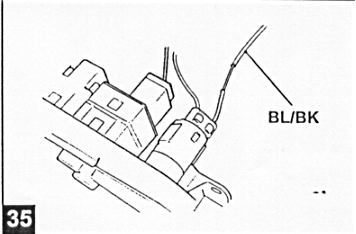

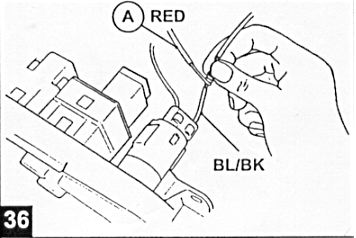

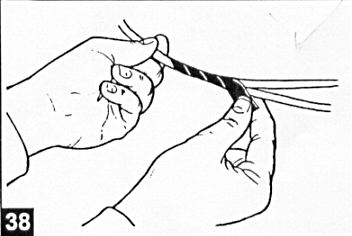

Strip blue/black wire that provides power

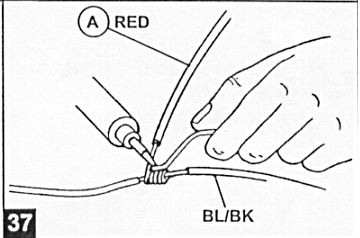

Wrap red wire onto blue/black lead

Solder wires

Tape previously soldered wires

Reinstall power outlet

Connect wiring harness to subwoofer and amp

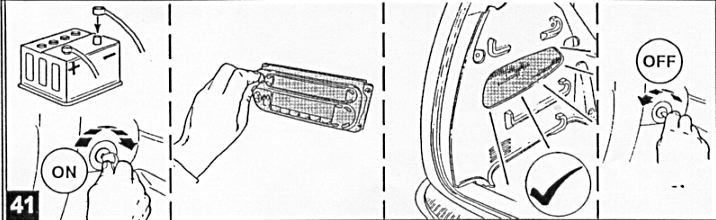

Reconnect battery and test for sound

Reinstall all removed parts in reverse order

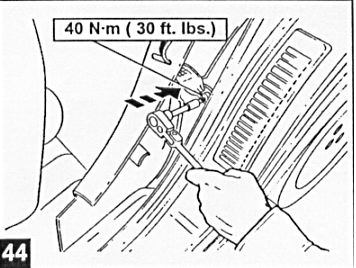

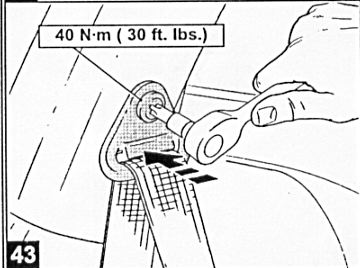

Reinstall upper seatbelt bolt - torque to 30 ft lbs

Reinstall lower seatbelt bolt - torque to 30 ft lbs

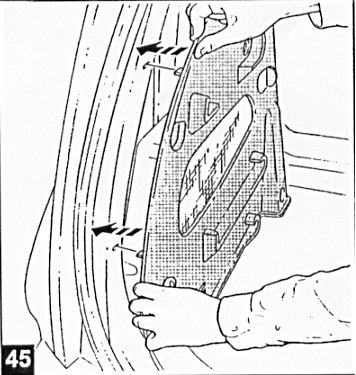

Reinstall trim panel

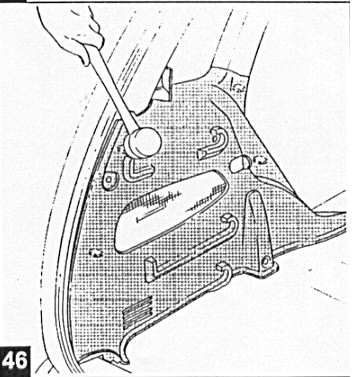

Tap panel with rubber hammer to secure firnly

That's all Folks.

Enjoy the sound!
